Test pump - high pressure 500 bar, electric - Tools

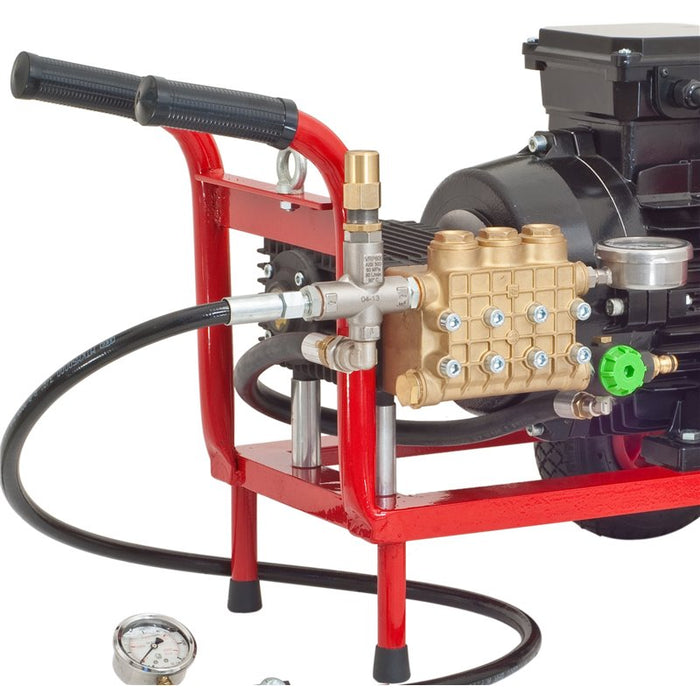

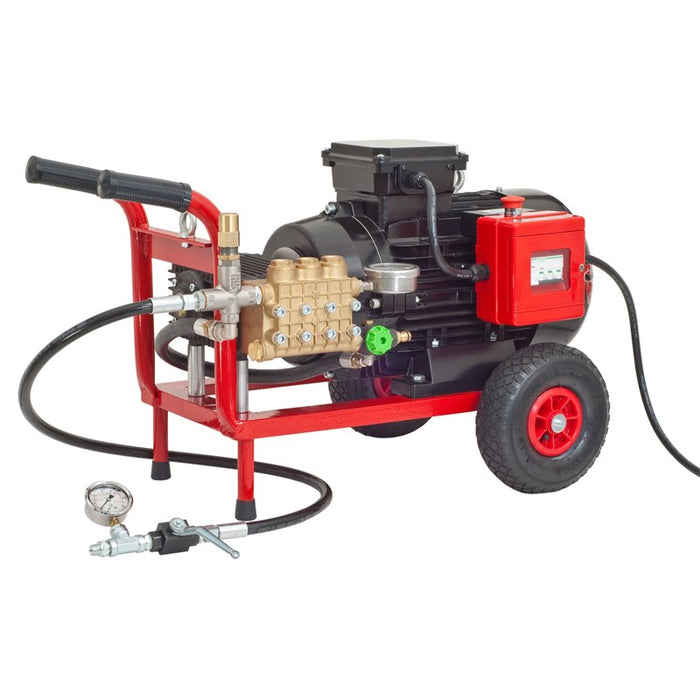

Electric test pump, high pressure. 100% made in Italy by MGF Tools. Allows pressure testing with a pressure adjustable from 0 to 500 bar. It is a complete pump and and professional tool to perform the tests in less time and effortlessly.

What we like about this pump testing equipment Electric high pressure:

• Robust transport cart with pneumatic wheels
• Hooks for lifting the machine with straps

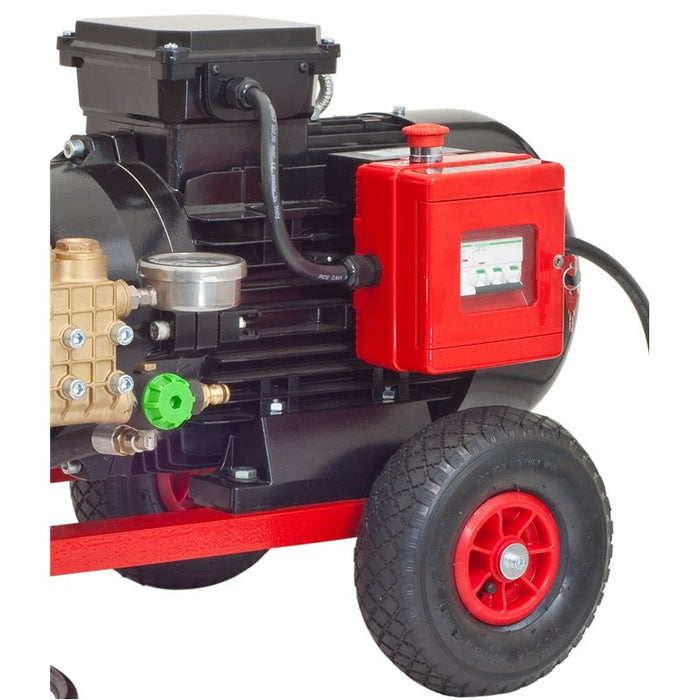

• Control panel with motor protection and automatic thermal protection
• Emergency stop button
• Protection filter for particulate inspectable and with steel mesh from 50um
• Quick-release coupling for the water supply; you can feed the pump with water from a tank or with the network pressure, recommended at least 1 bar
• Handles for manual handling of the pump
• Ability to set the pressure before the test, in order to avoid dangerous pressure on the plant

How to use this pump testing equipment Electric high pressure:

1. Connect the pump to be tested
2. Set the test pressure acting on the pressure regulator or 500 bar
3. Bleed the air from during filling
4. Pressurize the system to the desired value
5. Turn off the pump and start testing
6. During testing, the pump can be physically disconnected from the circuit
7. For more technical details, you will find in the Download tab and manual.
