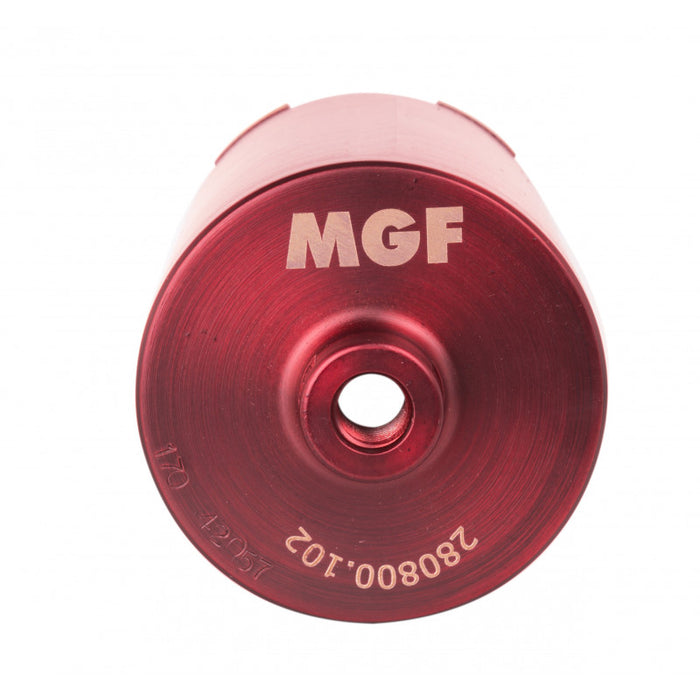

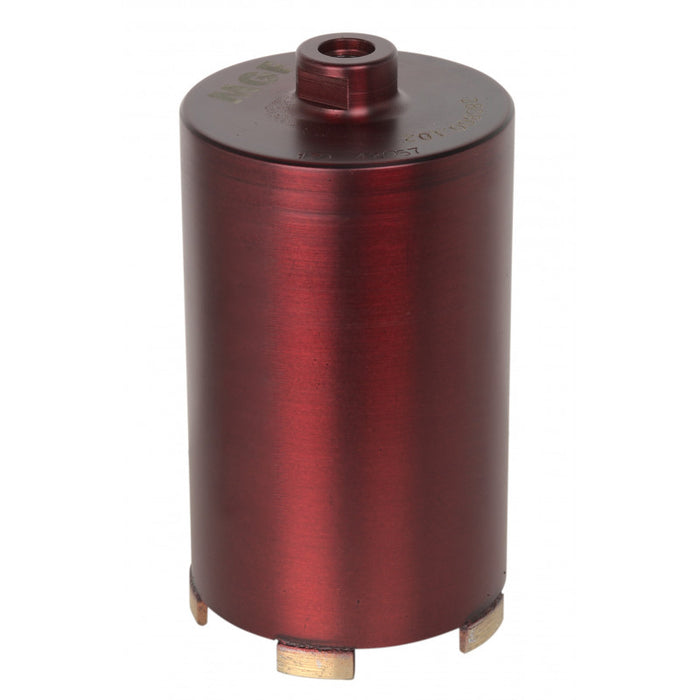

Laser diamond bit for dry and wet drilling 1 1/4"

SKU 280810-032

Diamond laser bit for wet and dry drilling 1 1/4", diameter from 32 to 202 mm. For use in wet and dry drills. Made in Italy

Save 35% Save 35%
Original price €135,56
Original price €135,56 - Original price €554,57
Original price €135,56
Current price €88,11
€88,11 - €360,47
Current price €88,11

The diamond bit with a 1 1/4" connection. It is recommended for wet and dry drilling in mixed, perforated masonry, brick, brick, concrete.

Special segmented, laser welded for high safety and strength. It is ideal for wet and dry drilling.

Technical specifications
100% MADE IN ITALY!!!

- The diamond crown with 1 1/4" connection, useful length 320 mm.
- The diamond segments are laser welded for dry and wet drilling.
- Available in diameters: 32-37-42-52-57-62- 68-72-82-92-102-107-112-122-127-132-142-152-162-182-202 mm
- Recommended for coring the following materials: mixed, perforated masonry, brick, brick, concrete . -
To be applied to 1.8/2.2KW dry and wet core drills.

Data Sheet

Diameter/segment number/segment

32mm/4/3.0 x 16
37mm/4/3.5 x 20
42mm/4/3.5 x 20
52mm/4/3.5 x 24
57mm/4/3.5 x 24
62mm/4/3.5 x 24
68mm /4/3.5 x 24
72 mm/4/3.5 x 24
82 mm/4/3.5 x 24
92 mm/4/3.5 x 24
102 mm/5/3.5 x 24
107 mm/5/3.5 x 24
112 mm/5 /3.5 x 24
127 mm/5/4.0 x 24
132 mm/6/4.0 x 24
142 mm/7/4.0 x 24
152 mm/7/4.0 x 24
157 mm/7/4.0 x 24
162 mm/9/4.0 x 24
182 mm/9/4.0 x 24
202 mm/9/4.0 x 24
